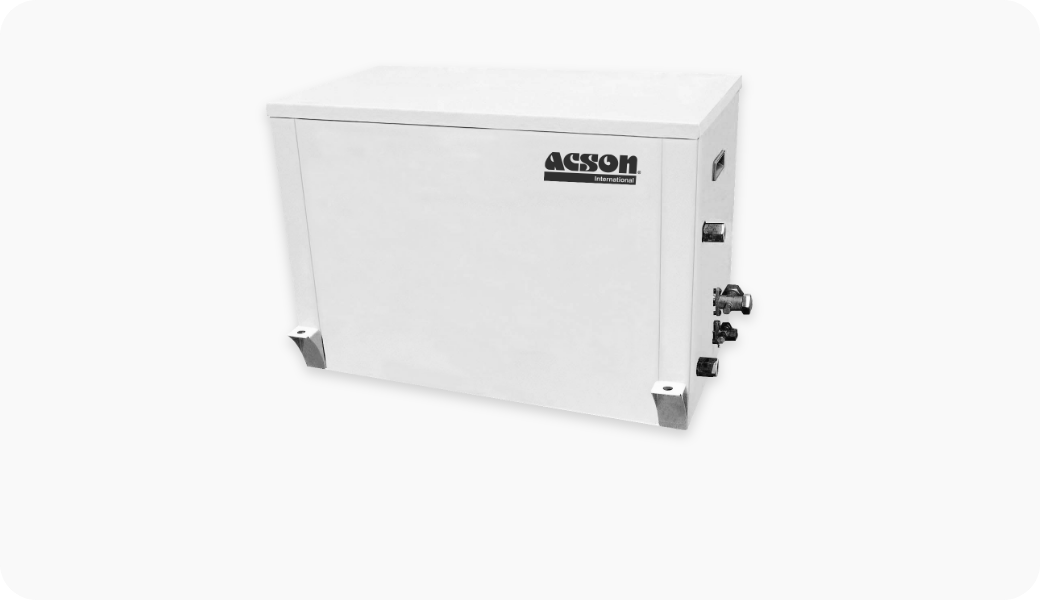

Water Source System
Water Source Split
Nominal Cooling Capacity:
9,000 BTU/h – 49,900 BTU/h
Water Source System
Water Cooled Packaged
(Horizontal)
Nominal Cooling Capacity:
9,400 BTU/h – 128,000 BTU/h

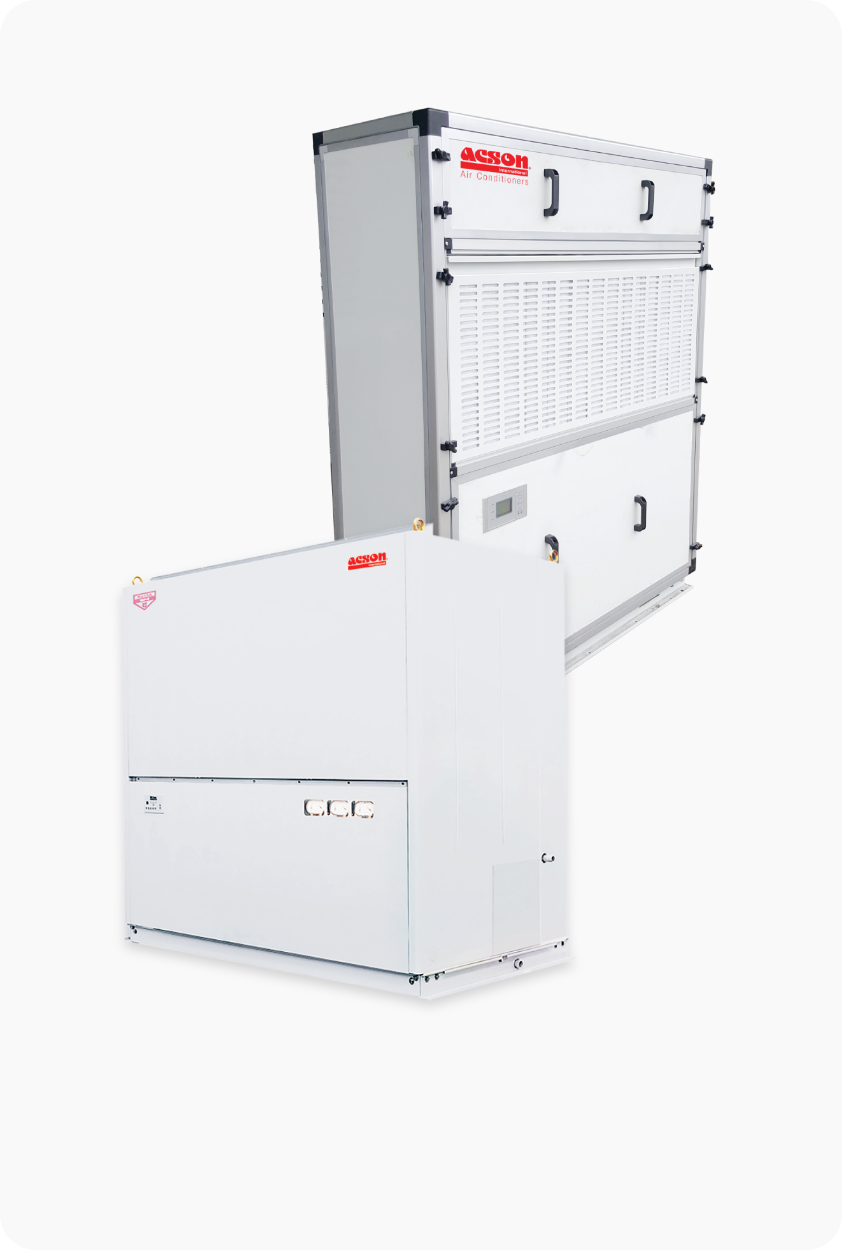

Water Source System
Water Cooled Packaged
(Floor Mounted)
Nominal Cooling Capacity:
56,400 BTU/h – 699,500 BTU/h
56,400 BTU/h – 247,400 BTU/h
57,700 BTU/h – 931,400 BTU/h
Water Source System
Water Source Split
Nominal Cooling Capacity:
9,000 BTU/h – 49,900 BTU/h
Water Source System
Water Cooled Packaged
(Horizontal)
Nominal Cooling Capacity:
9,400 BTU/h – 128,000 BTU/h
Water Source System
Water Cooled Packaged
(Floor Mounted)
Nominal Cooling Capacity:
56,400 BTU/h – 699,500 BTU/h
56,400 BTU/h – 247,400 BTU/h
57,700 BTU/h – 931,400 BTU/h
Acson water source system working principle is similar direct expansion system except water is used to cool down the condenser instead of air. Giving a better efficiency compare to air cooled.
With Water Source System
Power Commercial Spaces

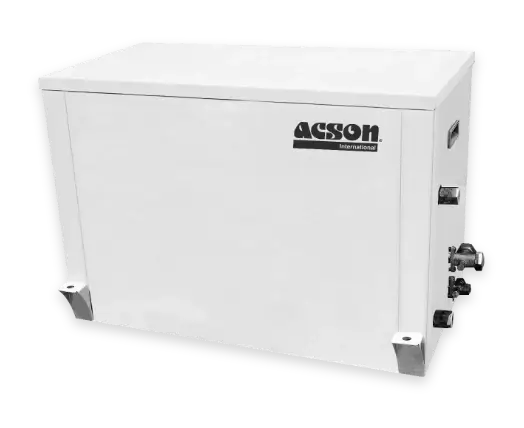

Model: A5WSS 10 – 60DR
Nominal Cooling Capacity: 9,000 BTU/h – 49,900 BTU/h
Refrigerant: R410A
Maximum Installation
Flexibility
The compact design and versatile combinations simplify architectural integration and space adaptation.
Variety Of Products
For Combinations
Acson water source splits offer a range of products and cooling capacities. Pair them in various combinations, including ceiling cassette and concealed options.

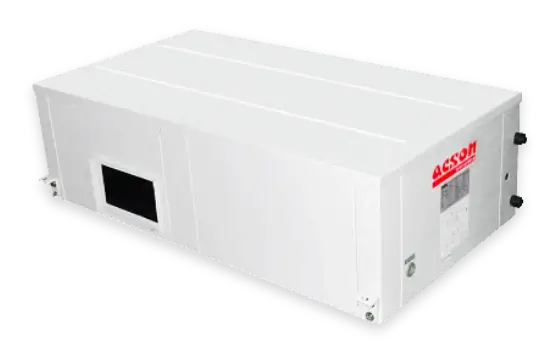

(Horizontal) - A5WH-D
Water Cooled Packaged
Model: A5WH010D – 150D
Nominal Cooling Capacity: 9,400 BTU/h – 128,000 BTU/h
Refrigerant: R410A
Partial Loading
Capacity
For certain models with two or more compressors, partial loading is achieved by switching compressors based on specific requirements.
Simplified Installation
Offer a range of external static pressure options. These units can be used with or without ducts, making them an excellent choice for applications that can’t use a chiller or as a chiller backup.
Intelligent Control System
This series offers various control options, including a standard wired controller and the possibility of using a central controller for up to 64 units.

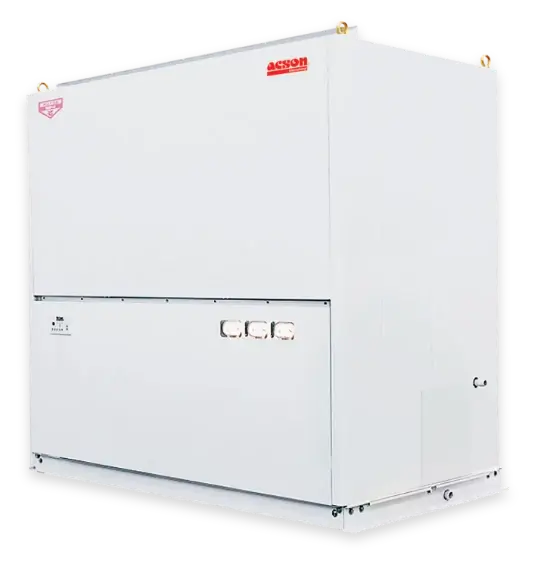

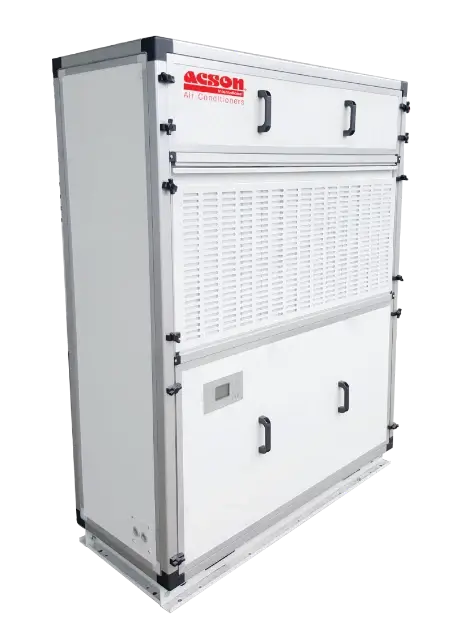

(Floor Mounted) - A5WCP
Water Cooled Packaged
Nominal Cooling Capacity: 56,400 BTU/h – 699,500 BTU/h
Nominal Cooling Capacity: 56,400 BTU/h – 247,400 BTU/h
Model: A5WCP 060A(P) – 940A
(Double Skin Models are available upon request)
Nominal Cooling Capacity: 57,700 BTU/h – 931,400 BTU/h
Refrigerant: R410A
Free-Blow
Air Conditioning Systems
An optional plenum is available for all models from A5WCP18BP(P) until A5WCP75BP(P) for free-blow applications.
Anti-Corrosion Unit Casing
The unit is built with an electro-galvanized steel body and epoxy polyester powder coating to improve durability.
High Efficiency
Hermetic Scroll Compressor
- Quiet operation.
- High efficiency performance.
- Greater capability at handling liquid and debris in the system.
