Commercial | Ducted Blower H-Series
R41OA Ducted Blower
H-Series
R41OA Ducted
Blower H-Series
Cooling Capacity: 8~75HP
Acson Ducted Split System featured high air flow, high external static pressure and long piping installations. Hence, it is suitable for hotel, office, hall, shopping mall, supermarket, factory and etc.
With Ducted Blower H-Series
Power Commercial Spaces

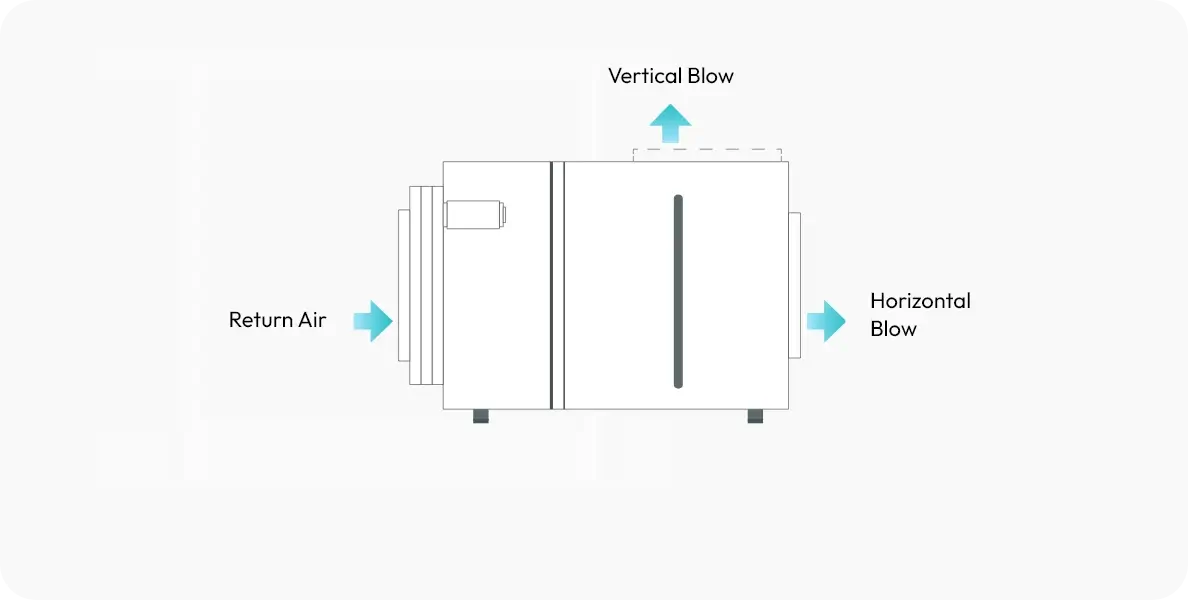

Flexibility Air Discharge
Flexibility Of Air Supply
The air distribution is achieved uniformly throughout the room via the ducting system. A belt-driven blower is employed, enabling adjustment of both air volume and static pressure. This adaptability allows for a broader range of applications.
Fresh Air Intake (Optional)
Enhancing indoor air quality can be achieved by incorporating fresh air intake design into the building. Integrating a fresh air inlet into the system is a straightforward and cost-effective solution.

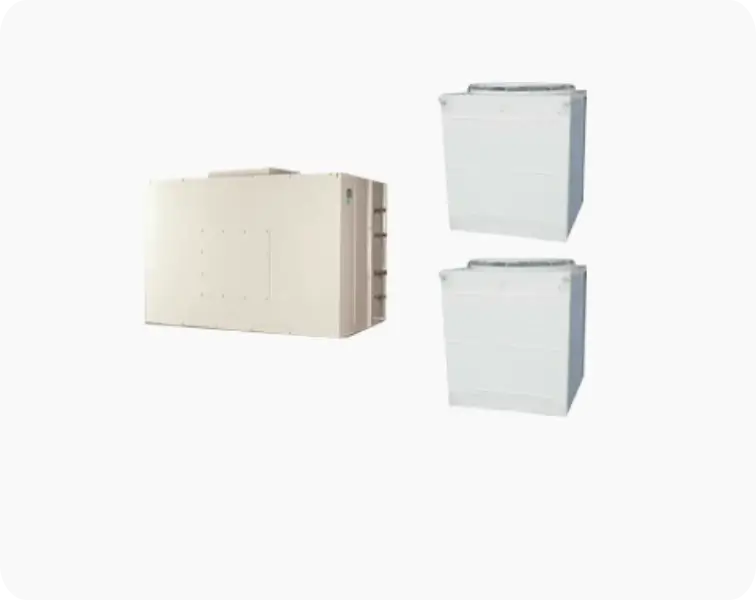

Partial Loading
Acson Ducted Split System is designed with two or more separate refrigerant circuits with multiple individual compressors. By doing so, the unit has part load capabilities. This will improve the reliability and energy efficiency especially during low loading operations.

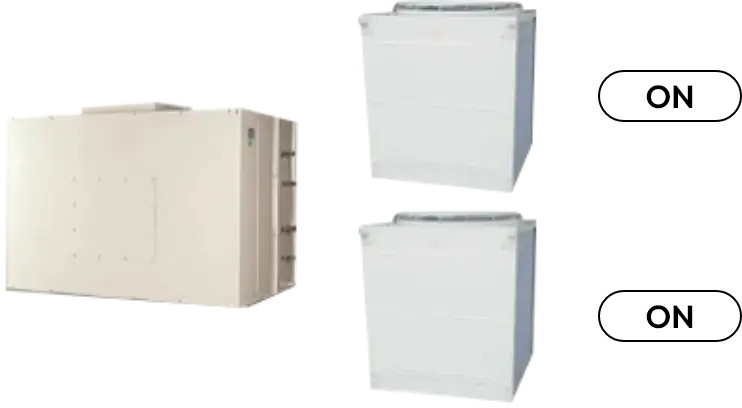

Day time
REQUIRED CAPACITY

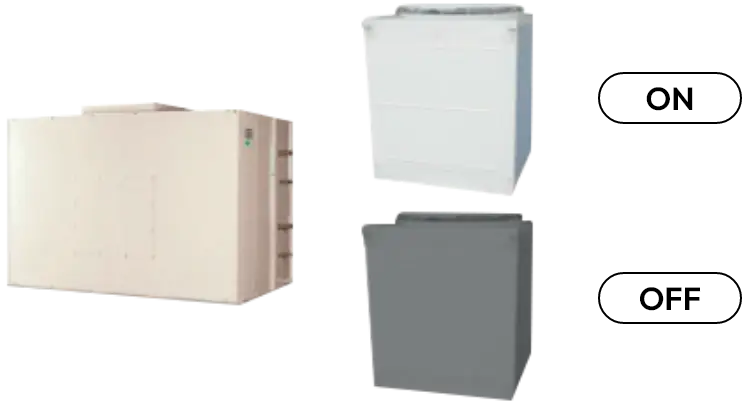

Night time
REQUIRED CAPACITY
150,000 BTU/h
Additional Plus Point Features
Automatic Restart
Unit can be automatically restarted once the power supply is back to normal and keeping the last setting condition.
Self Diagnosis System
With sensors and intelligent control board, error can be detected through blinking LEDs.
Double Skin Ducted Blower
Available upon request
(8.0HP-50.0HP)
Safety Features
- High pressure and low pressure protection.
- Phase sequencer is implemented to detect any wrong phase and phase loss during installation or operation.
- Built-in internal overload protection for compressor.
