Commercial | CoolRow Precision Air Conditioners (PAC)
CoolRow
Precision Air Conditioners
Cooling Capacity: 12.5kW – 60kW
CoolRow
Precision Air Conditioners
Cooling Capacity: 12.5kW – 60kW
Acson CoolRow is a compact design precision air conditioner designed to couple with multiple air flow (hot or cold air) in order to improve air circulation and efficiency. CoolRow are integrated in the rows of server racks that greatly enhance air distribution and taking cooling directly to the heat load.
With CoolRow Precision Air Conditioners (PAC)
Power Commercial Spaces

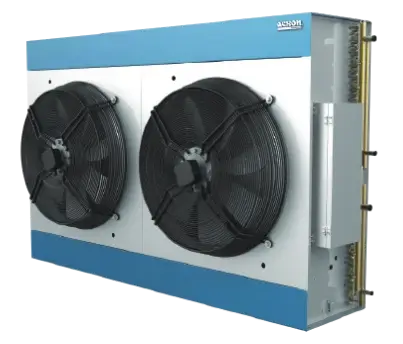

Diversified Application
Wide input cooling capacity range to meet various application needs.
- Cooling method: Air-cooled/ Water-cooled (12.5kW-60kW) & chilled water (30kW-70kW).
- Functions: Cooling only, cooling + electric heating type, constant temperature and constant humidity.
Flexible Air Supply
Standard Configuration: Implement the forward air supply mode, making it ideal for cold aisle containment applications to Customizable Airflow: The guide grille can be adjusted on-site to control the direction of air supply.

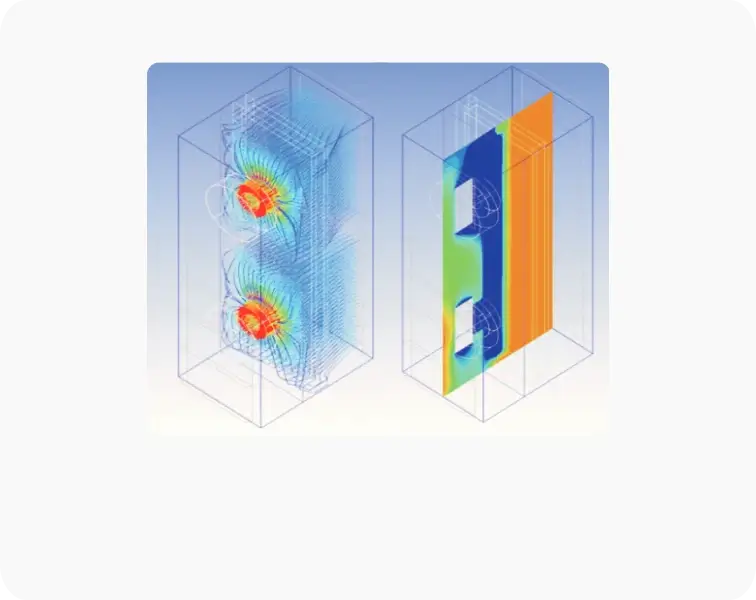

CFD visualization
Illustrates the airflow and temperature field within the equipment cabinet.
Efficient Operation
- High performance: able to handle high temperature return air.
- Features a shorter air circulation route for optimal energy savings.
Diversified Application
- Cooling method: Air-cooled/Water-cooled (12.5kW-60kW) & chilled water 30kW-70kW.
- Functions: Cooling only, cooling + electric heating type, constant temperature and constant humidity.
Advanced & Reliable
Control System
- Up to 16 temperature sensors can be connected (temperature data of cabinet can be collected to calculate the cooling capacity requirement).
- Standard configure RS485 communication interface and remote monitoring access.
- Configured with external custom alarm interface (e.g: fire alarm).
- 7-inch HD touchscreen display.
