Chilled Water System
Cool down your refrigerant circuit with Acson Chilled Water System
Chilled Water System
Cool down your refrigerant circuit
with Acson Chilled Water System
With The Touch Of A Button
Control The Temperature

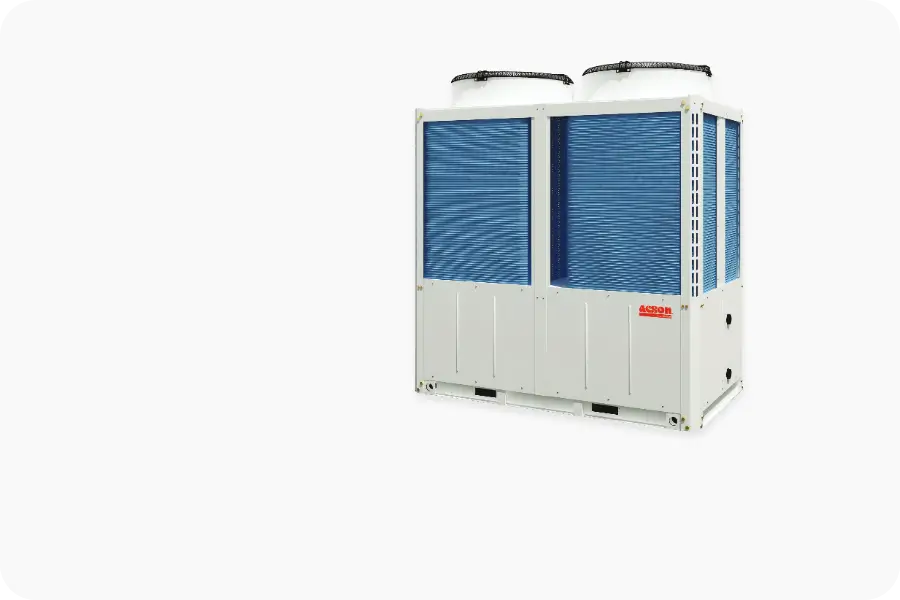

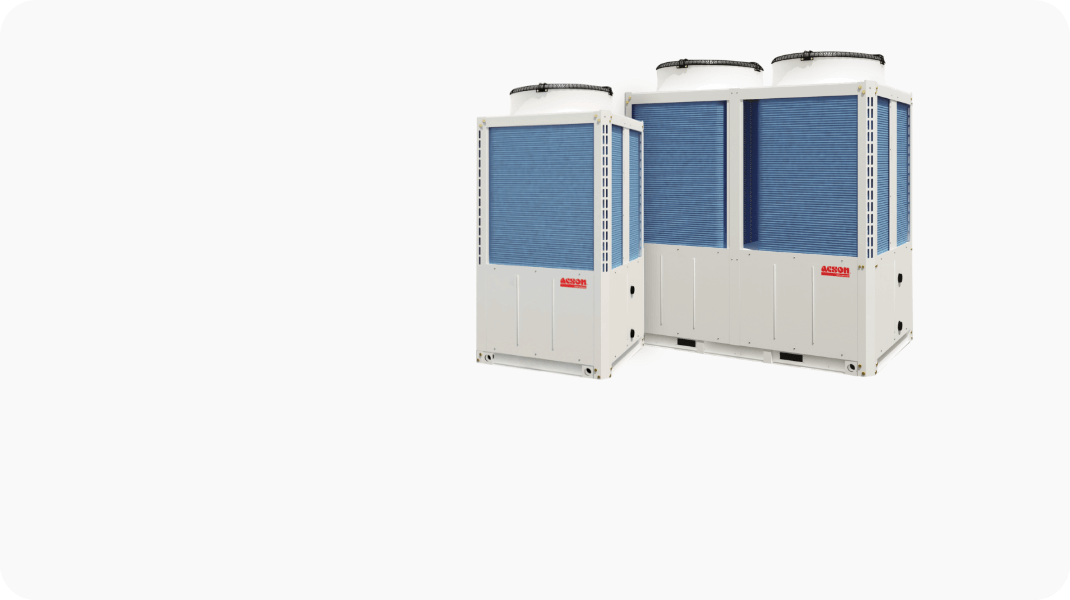

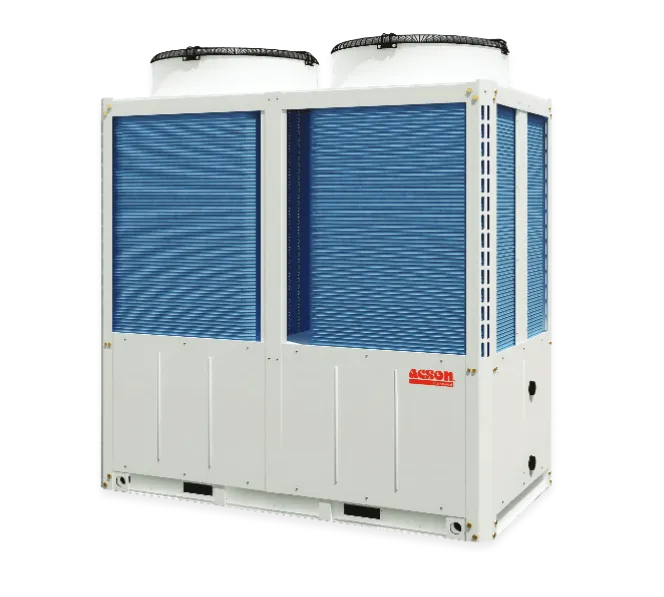

R32 Air Cooled
Inverter Modular Chiller E Series
R32 Modular Chiller features cutting-edge DC inverter technology and premium components from reputable brands, all rigorously tested to ensure optimal compatibility and reliability. Its design and configuration are meticulously optimized to deliver outstanding performance. Equipped with energy-efficient inverter compressors, finned tube heat exchanger, and electronic expansion valves, this chiller achieves exceptional efficiency and superior performance
Model: R32 Air Cooled Inverter Modular Chiller E Series
Cooling Capacity: 18 – 574 tonnage
Expandable Capacity
The modular design offers a new level of unit compactness and expansions, configuration flexibility, allowing for easy expansion of capacity. By combining up to 16 units, you can seamlessly extend the system to meet additional cooling requirements for building.
Integrated Heat Exchanger Design

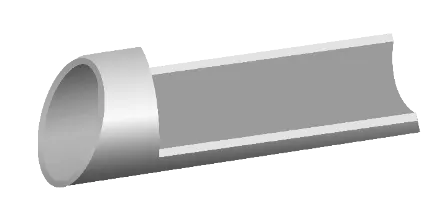

Common bare pipe
The inner surface of a standard bare pipe is smooth, resulting in a smaller contact area with the refrigerant and relatively lower heat exchange efficiency
Inner-grooved copper tube
Acson utilizes high-efficiency inner-grooved copper tubes, designed to maximize surface area and enhance heat exchange performance.

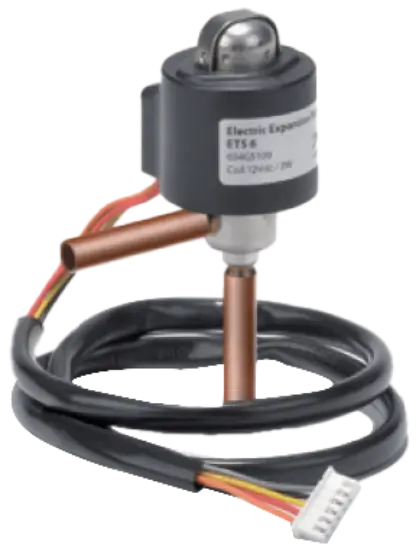

Multiple Step EXV Control
480-steps electronic expansion valve achieves accurately control of throttling
Enhanced BPHE
The stainless steel brazed plate heat exchanger utilizes advanced forcible cross-convection technology, delivering higher efficiency in a more compact design.
R410A Air Cooled
Inverter Modular Chiller E Series
Model: R410A Air Cooled Inverter Modular Chiller E Series
Cooling Capacity: 18.48 – 591.00 tonnage

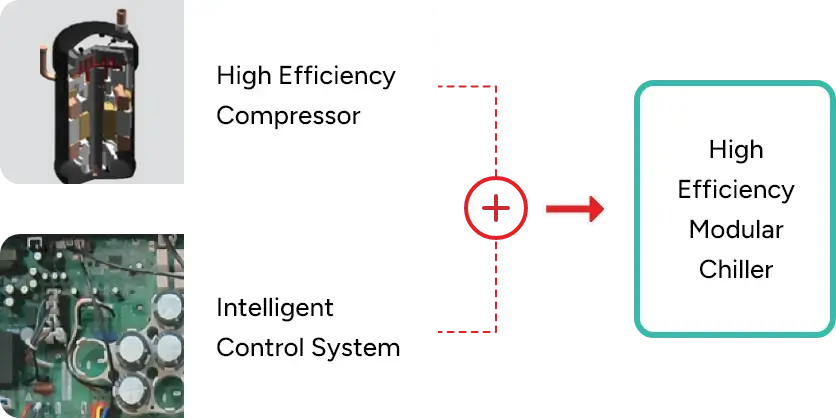

Inverter Technology
By advanced DC inverter technology, it provides the outstanding energy efficient performance. The module is equipped with a DC inverter compressor and fan motor, as well as intelligent inverter control system.

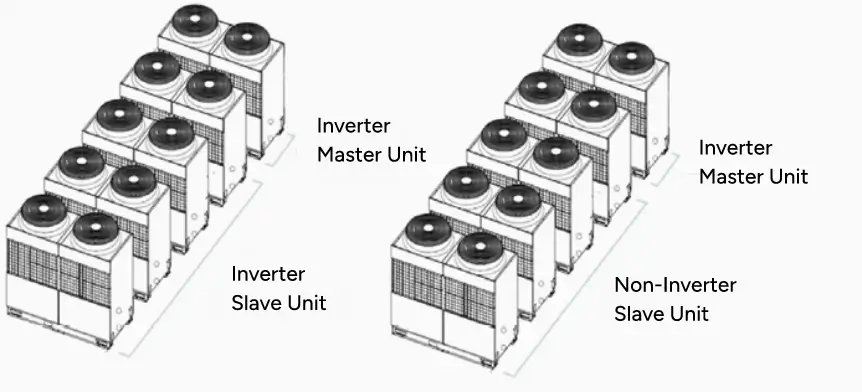

Expandable Capacity
The beauty of modular design feature new levels of unit compact in size and configuration which facilitates flexibility in expands of capacity for building extension by arbitrary combination up to 16 units to cater to additional cooling requirements.

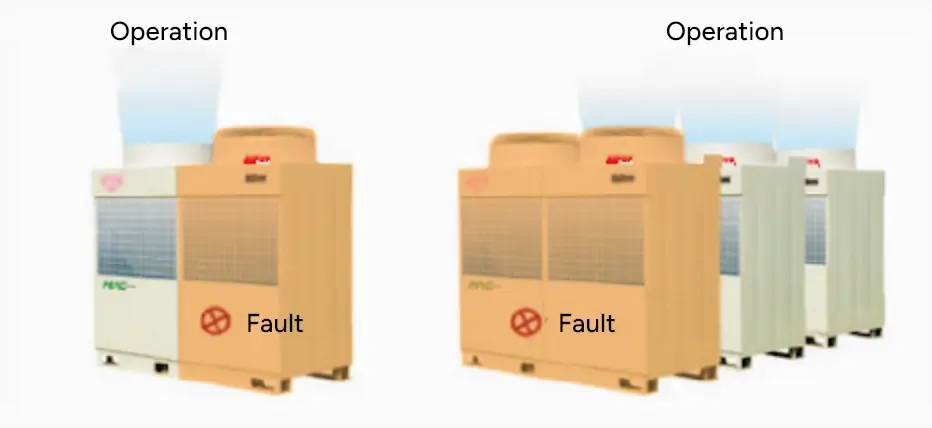

Redundant Operation
Redundancy feature back up capacity and capabilities to continue to run given a component failure. Fault of any unit can be isolated for service and will not affect the normal operation of other units.

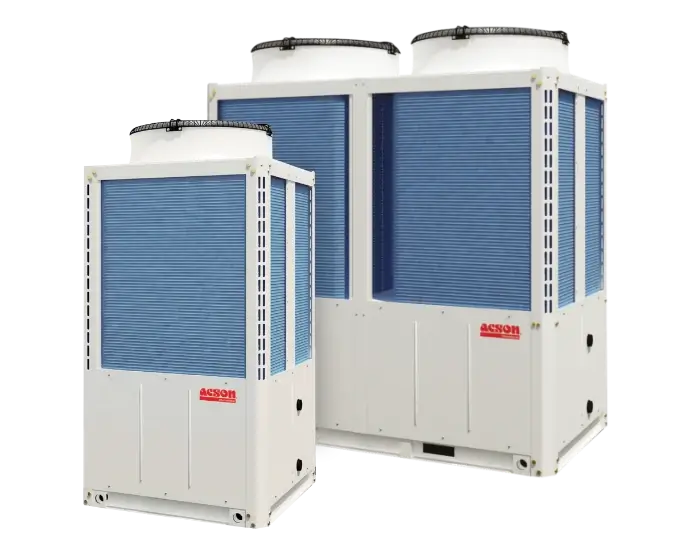

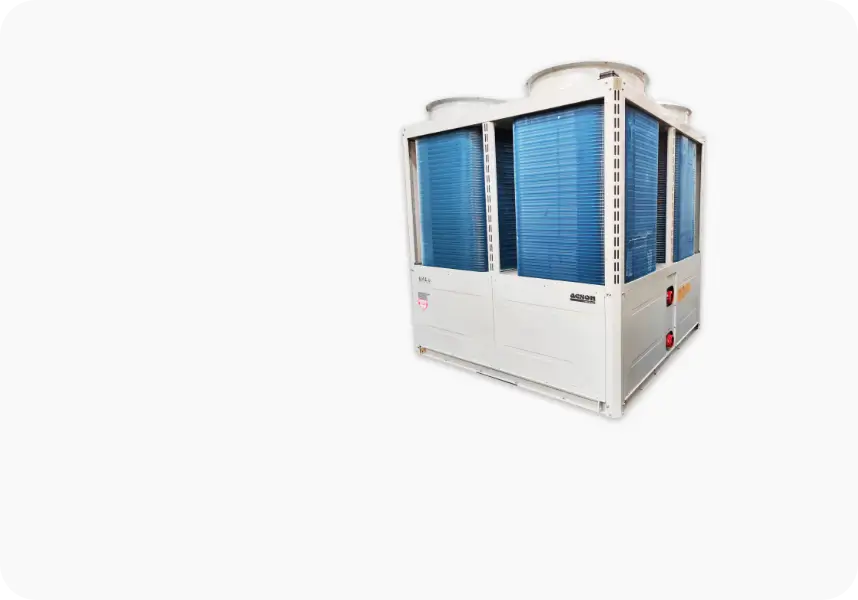

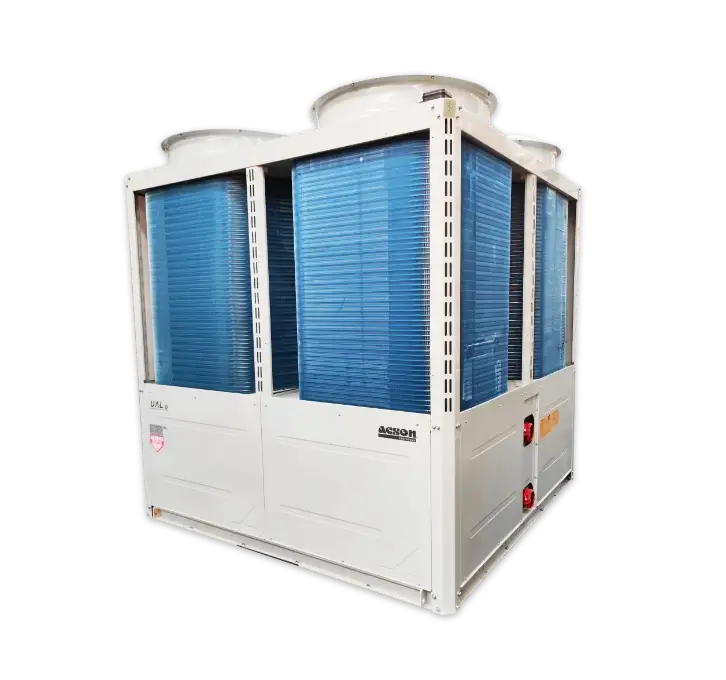

R410A Air Cooled
Modular Chiller D Series
Acson is dedicated to introducing high-efficiency air-cooled modular chiller that caters to the demanding requirements of the contemporary market. This cutting-edge technology amalgamates the advantages of the R410A refrigerant and inverter into a singular entity. This strategic choice guarantees compatibility with a diverse range of applications.
Model: R410A Air Cooled Modular Chiller D Series
Cooling Capacity: 18.48 – 1,342.11 tonnage
Expandable Capacity

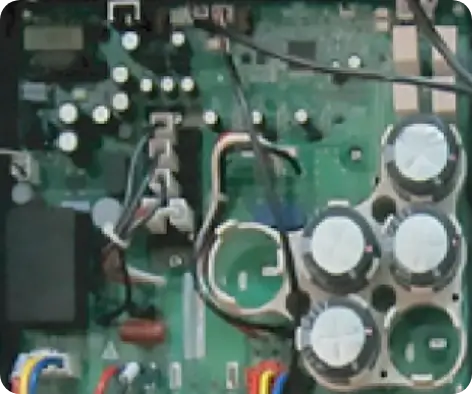

Intelligent Control System With Safety Protection
The modular chiller incorporates a user-friendly intelligent control system, enhancing its overall functionality. This system employs microchips and a large LCD display to facilitate swift and effortless control. Furthermore, a comprehensive set of safety measures, including high and low-pressure switches, is integrated into the modular chiller to ensure secure and risk-free operation.
Intelligent Control System
Redundant Operation
The redundancy feature provides backup capacity and capabilities to sustain operations in the event of component failure. If any unit experiences a fault, it can be isolated for servicing without disrupting the normal functioning of other units.
R410A Air Cooled
Inverter Mini Chiller ER2 Series

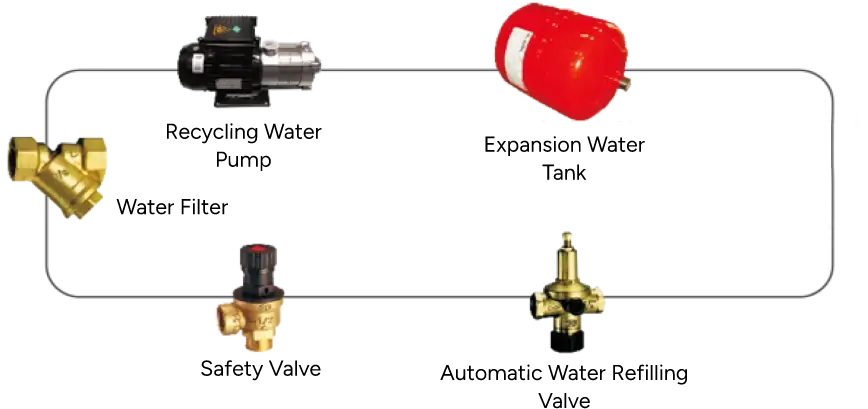

The mini chiller is fully integrated and equipped with key hydronic components such as expansion tank, water tank, brazed plate heat exchanger and water circulating pump. The all in one concept will ease the job of installation.
Cooling Capacity: 3.2 – 11.4 tonnage
Wide Operating Range
The unit operates normally in the temperature range of -15°C to 52°C for cooling and -25°C to 43°C for heating operating.
The whole system is provide with a complete set of accessories. Installation can be easily completed by connecting the water pipe to the terminal.
Protection

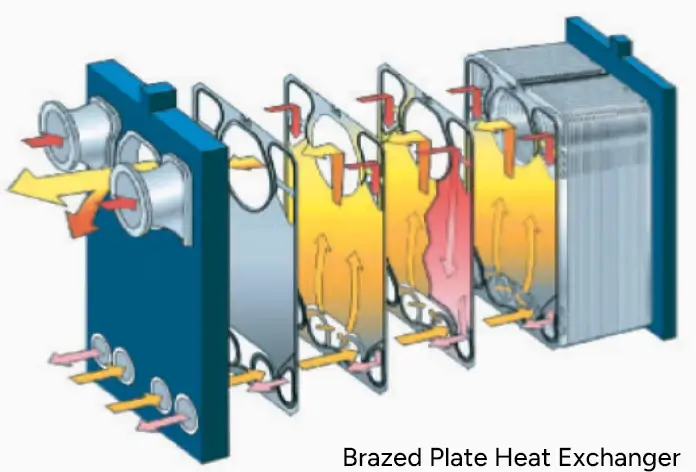

- Anti-Freeze Heater: The BPHE (Brazed Plate Heat Exchanger) has a strip heater around it to prevent from water freezing
- Anti-Freeze Sensor: Signal is sent from the anti-freeze sensor to cut out the compressor if the water temperature becomes too low to prevent BPHE from freezing

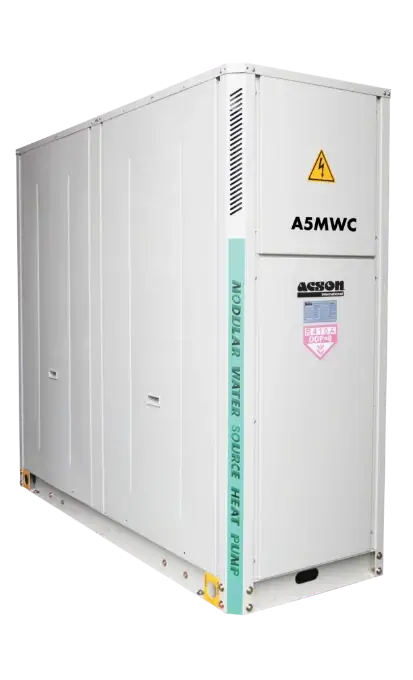

R410A Water Cooled
Modular Chiller BR Series
Discover our Water-Cooled Modular Chiller System – a pinnacle of adaptability and efficiency. Tailored for diverse applications, it offers precise temperature control through advanced algorithms and adaptive tech. With a space-saving design and eco-friendly features, it’s the ultimate cooling solution for reliability, performance, and sustainability.
Model: R410A Water Cooled Modular Chiller BR Series
Cooling Capacity: 19.62 – 978.15 tonnage
The elegance of the modular design introduces enhanced compactness and configuration, offering flexibility in expanding capacity for building extensions. This is achieved through a versatile combination of up to 16 units, allowing seamless adaptation to increased cooling needs.
Reliable Operation
The malfunction of any compressor or the maintenance and care of any individual unit will not disrupt the regular operation of the remaining units.

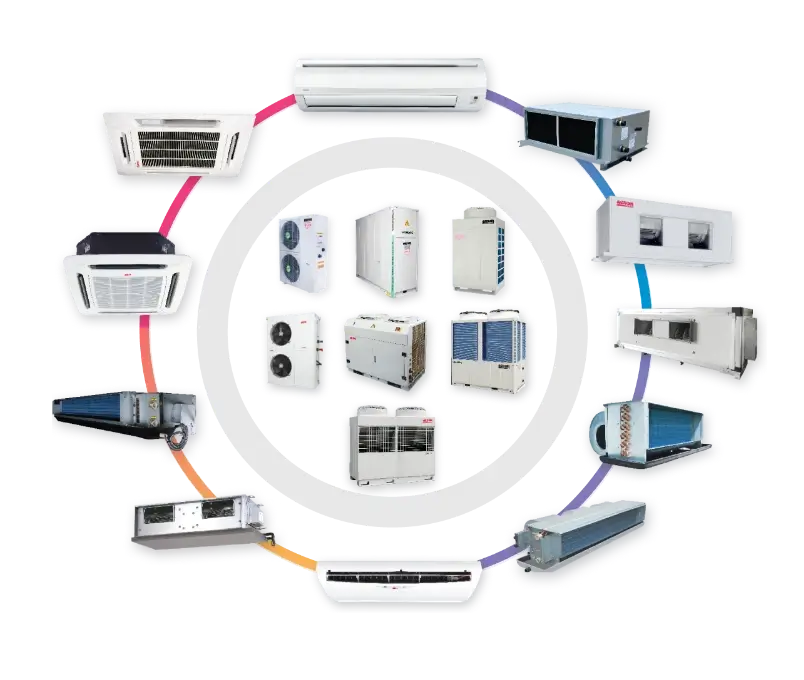

Acson offers a diverse selection of fan coil units that can be paired with our chillers, spanning from wall-mounted options to larger units like ducted blowers. This comprehensive range provides an optimal solution for all your requirements, whether you’re seeking a low static ceiling concealed unit or a high static ducted blower.
Cooling Capacity: 8,300 – 299,800 BTU/h

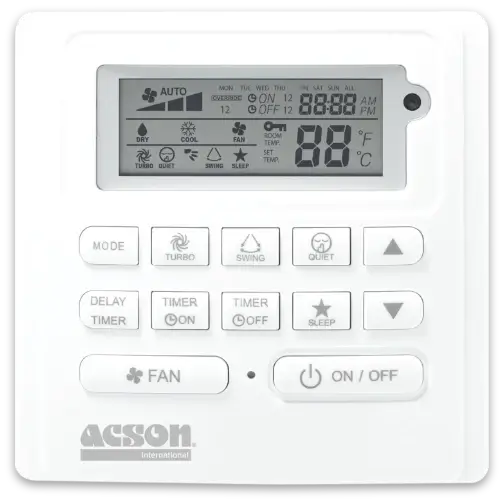

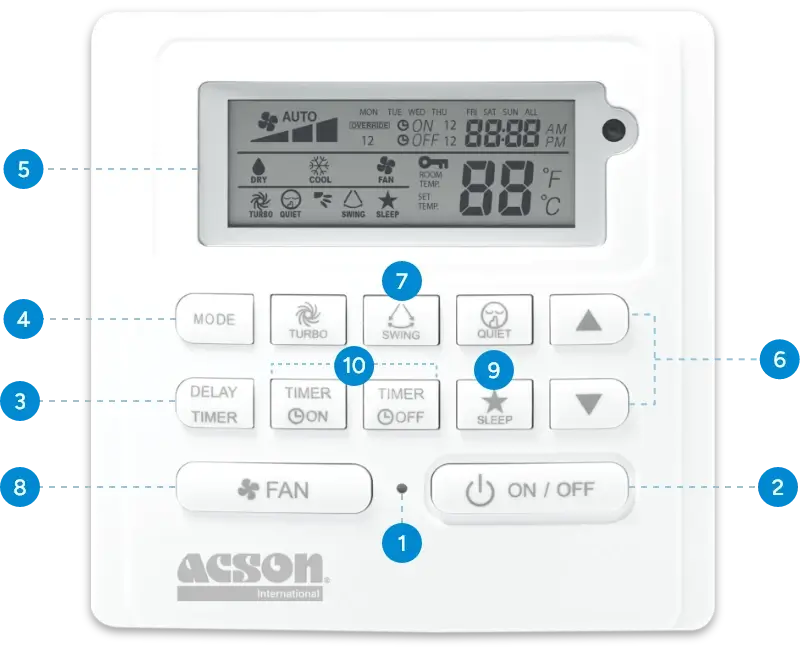

Standardized SLM9 Controller
*Applicable for specific model
Product Features
1
Real Time Clock (RTC)
Set the real time clock
6
Temperature Button
Set the temperature according to your preferences
2
ON/OFF Power Button
The Power Button turn the unit ON or OFF
7
Swing Button
Swing at your command or fix the louver at your preferred position
3
Delay Timer Button
Delay the “OFF” timer function by maximum of 2 hour
8
Fan Button
Control your airflow to Low, Mid, High, or Auto and let your unit do the thinking
4
Mode Button
Different mode for different ambient – Cool, Dry, and Fan
9
Sleep Button
Gradually increase the room temperature for a better sleeping environment
5
LCD Display
Every information of the unit vividly display in LCD screen
10
Timer Button
Turn on/off the unit automatically with its built-in timer. Maximum of 2 on/off timer
6
Temperature Button
Set the temperature according to your preferences
7
Swing Button
Swing at your command or fix the louver at your preferred position
8
Fan Button
Control your airflow to Low, Mid, High, or Auto and let your unit do the thinking
9
Sleep Button
Gradually increase the room temperature for a better sleeping environment
10
Timer Button
Turn on/off the unit automatically with its built-in timer. Maximum of 2 on/off timer
