Enjoy constant comfort with invisible air wall
Air Curtain (D Series)
Enjoy constant comfort
with invisible air wall
With Acson Air Curtain D Series

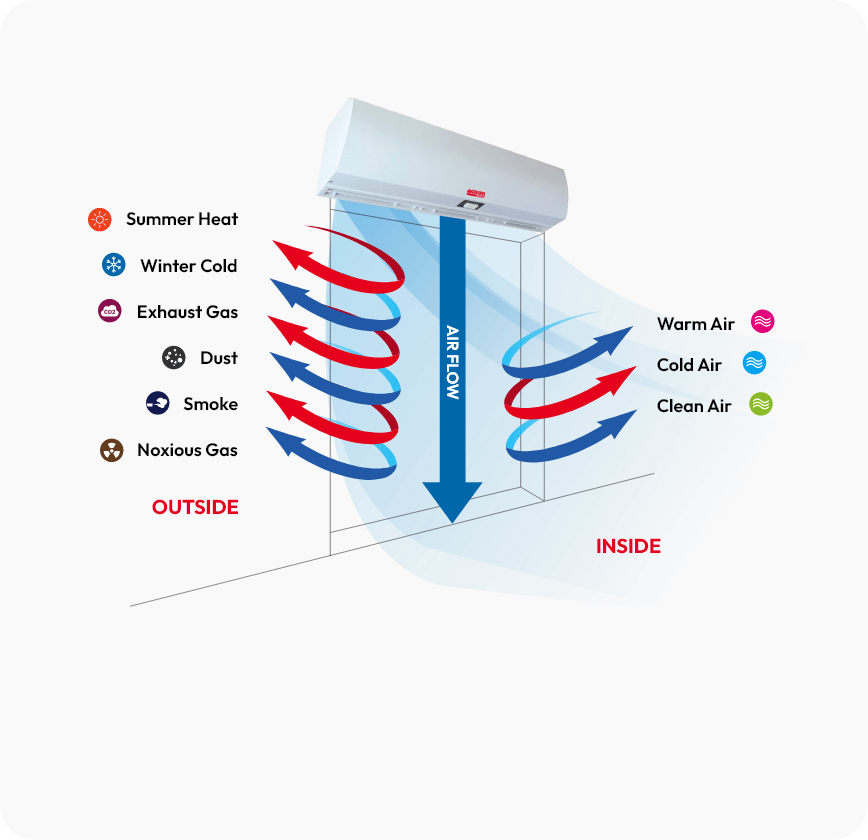

The Invisible Wall
The Acson D Series Air Curtain functions as an imperceptible air barrier, installed at entrances and between interior spaces to thwart the intrusion of undesirable heat, dust, and airborne pollutants. This innovation enhances indoor air quality, providing all occupants with the pleasure of refreshing, unpolluted air.
Optimal Air Quality
Experience uninterrupted comfort with an unseen air barrier that ensures optimal indoor air quality and effectively blocks out unwanted elements through the Acson Air Curtain.

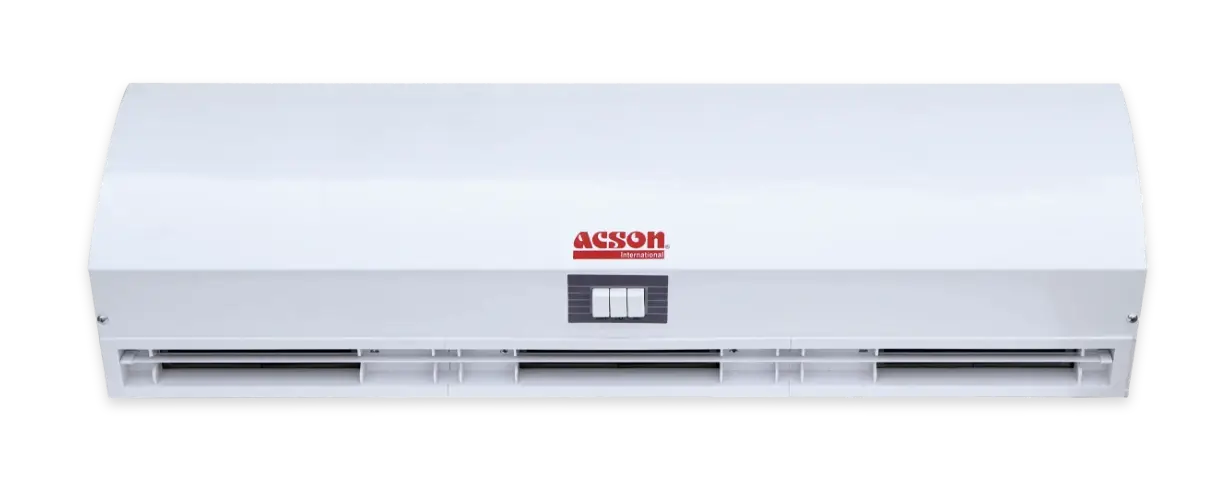

Product Features
Selectable fan speed with a switch control – High & Low
Adjustable deflector to position according to different preferences
Slim profile & elegant design blends with any interior
Quiet operation
Simple installation in 3 steps
Air flow up to 12ft height

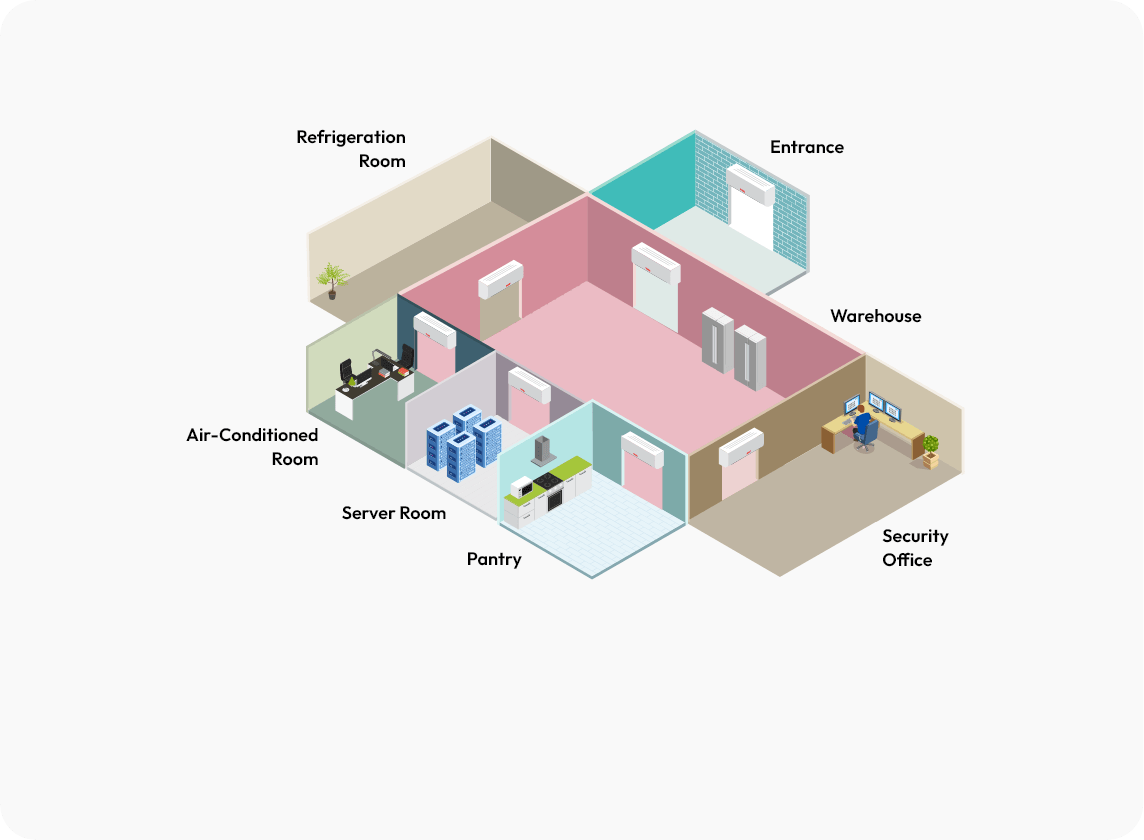

Places To Install:

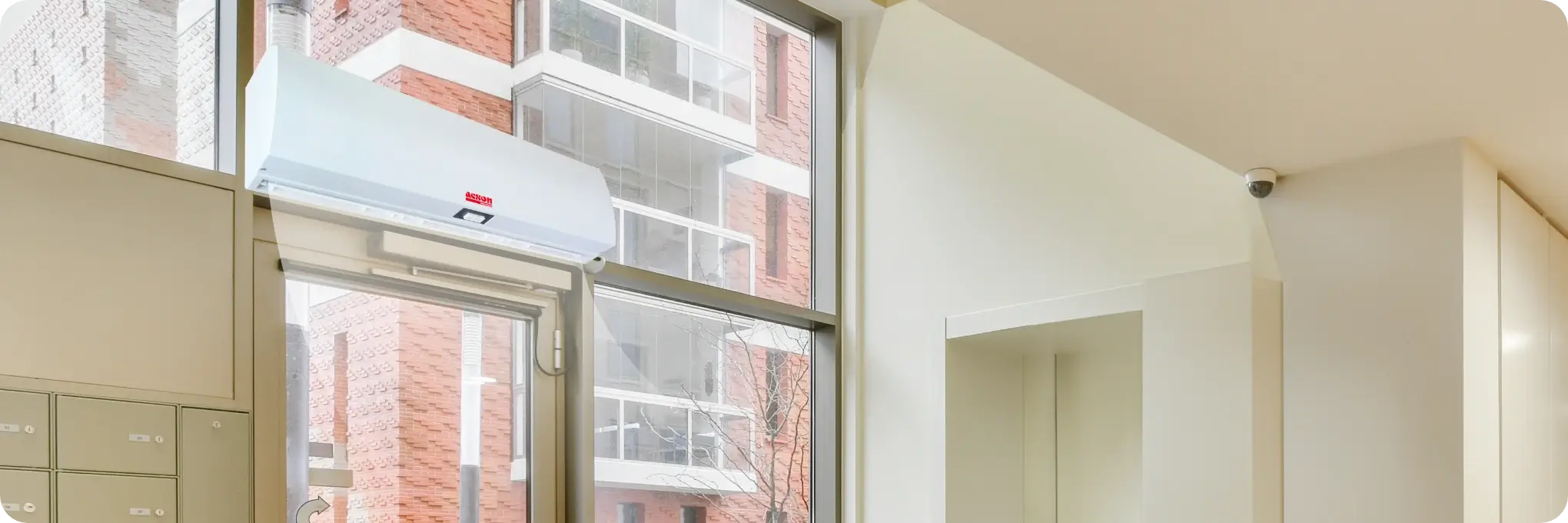

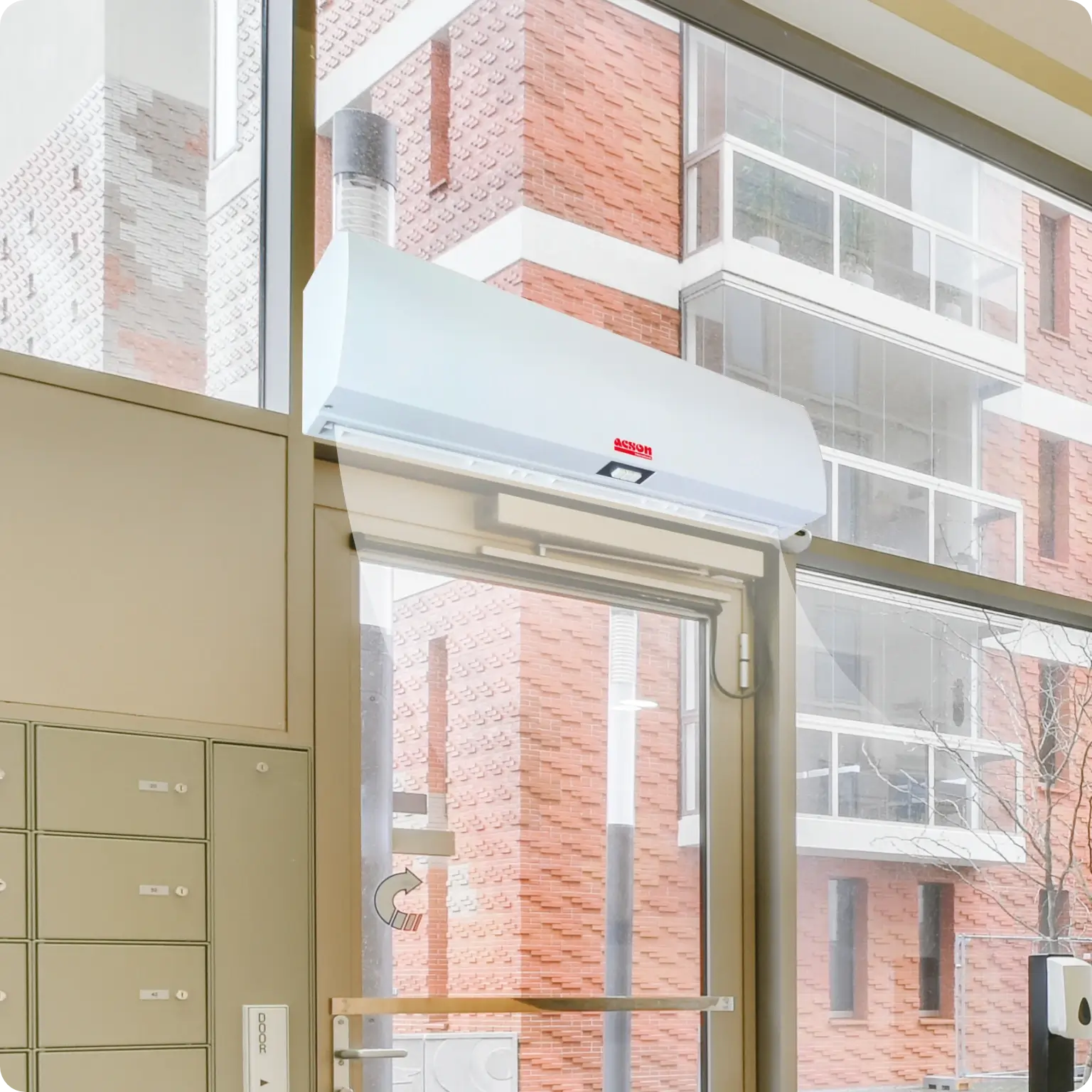

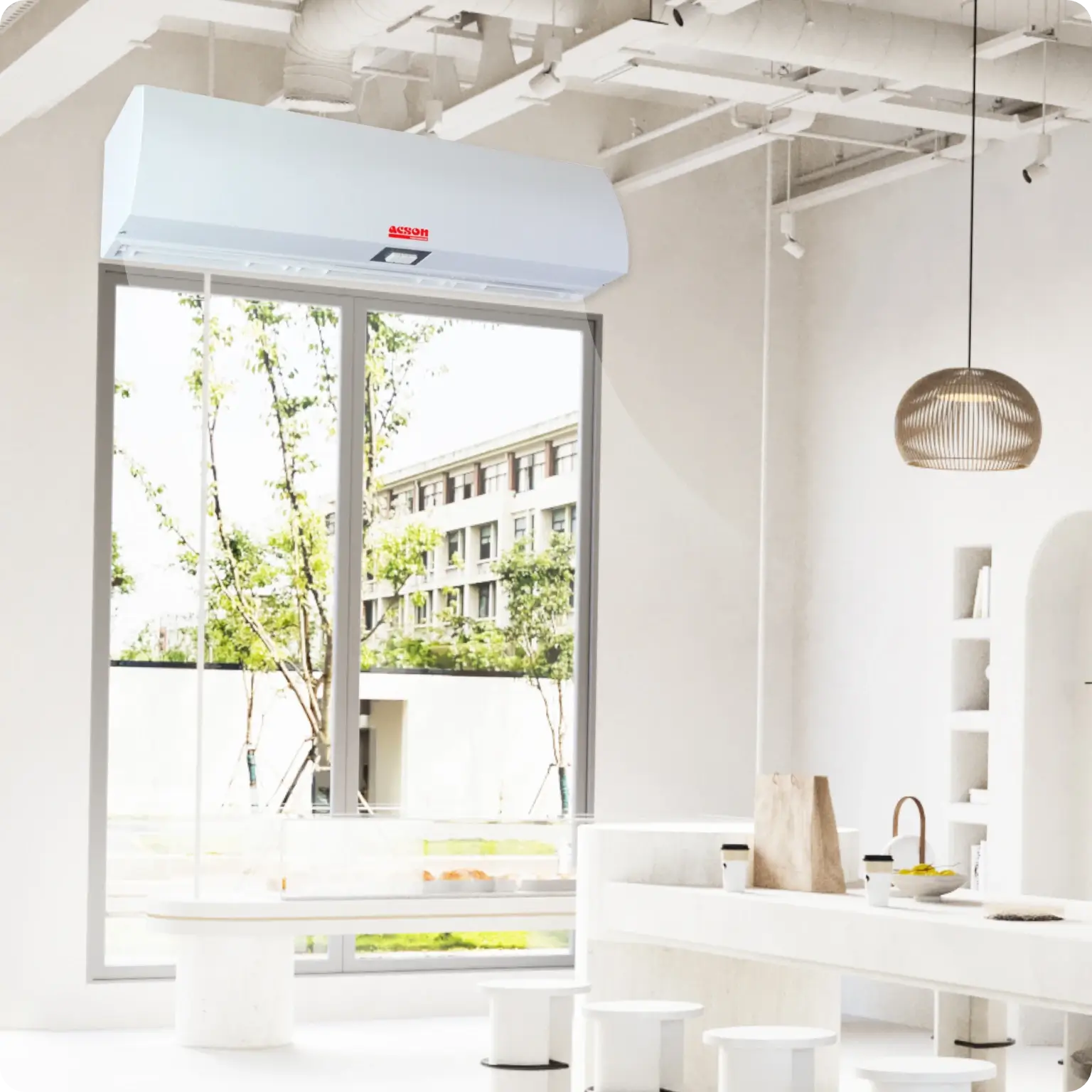

Between indoor and outdoor:
Cafe, Restaurant, Garage, Office, Factory, Warehouse, Convention Center
Between interior spaces:
Warehouse/Finish Good Area, Refrigeration Room, Kitchen, Air-conditioned Spaces
Product Specification
Air Velocity Chart
| Model | ACA 308D | ACA 408D | ACA 310D | ACA 410D | ACA 312D | ACA 412D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HI | LOW | HI | LOW | HI | LOW | HI | LOW | HI | LOW | HI | LOW | ||
| Rated Voltage | V | 220 - 240 | 220 - 240 | 220 - 240 | 220 - 240 | 220 - 240 | 220 - 240 | ||||||
| Rated Frequency | Hz | 50 | 50 | 50 | 50 | 50 | 50 | ||||||
| Current | A | 0.59 | 0.47 | 0.73 | 0.57 | 0.81 | 0.59 | 1.08 | 0.79 | 0.92 | 0.72 | 1.2 | 0.92 |
| Input Power | W | 130 | 104 | 160 | 127 | 195 | 142 | 260 | 189 | 218 | 171 | 285 | 222 |
| Air Flow | CFM | 580 | 482 | 754 | 620 | 635 | 510 | 810 | 700 | 698 | 600 | 1010 | 820 |
| Air Speed | m/s | 12.2 | 10.8 | 11.8 | 10.4 | 14.8 | 12.5 | 14.8 | 12.5 | 16.7 | 14.5 | 16.5 | 15.6 |
| Sound Level | dB(A) | 48 | 51 | 48 | 51 | 54 | 57 | 56 | 59 | 57 | 60 | 57 | 60 |
| Unit Size (H x W x D) | mm | 230 x 900 x 212 | 230 x 1200 x 212 | 230 x 900 x 212 | 230 x 1200 x 212 | 230 x 900 x 212 | 230 x 1200 x 212 | ||||||
| Net Weight | kg | 17.0 | 21.0 | 17.0 | 21.0 | 17.0 | 21.0 | ||||||
